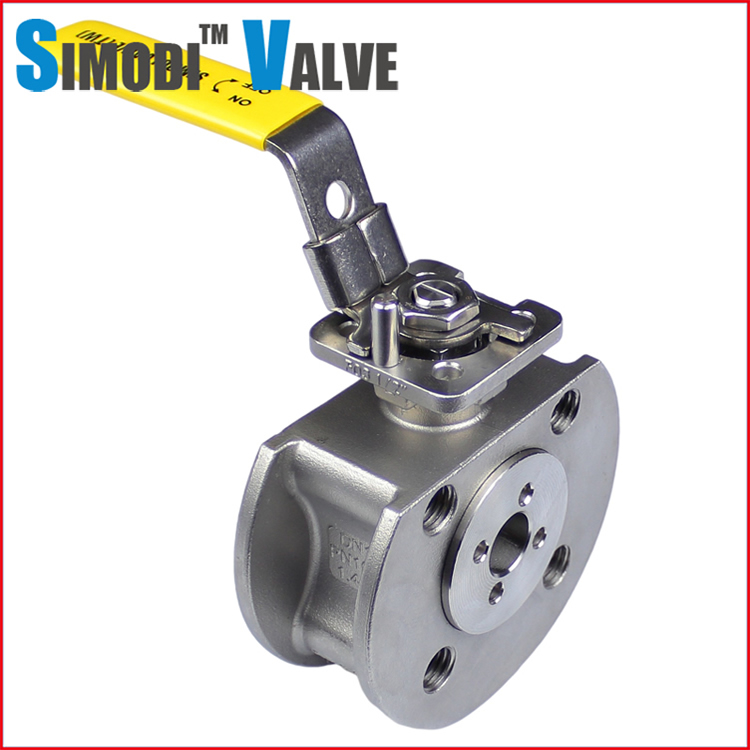

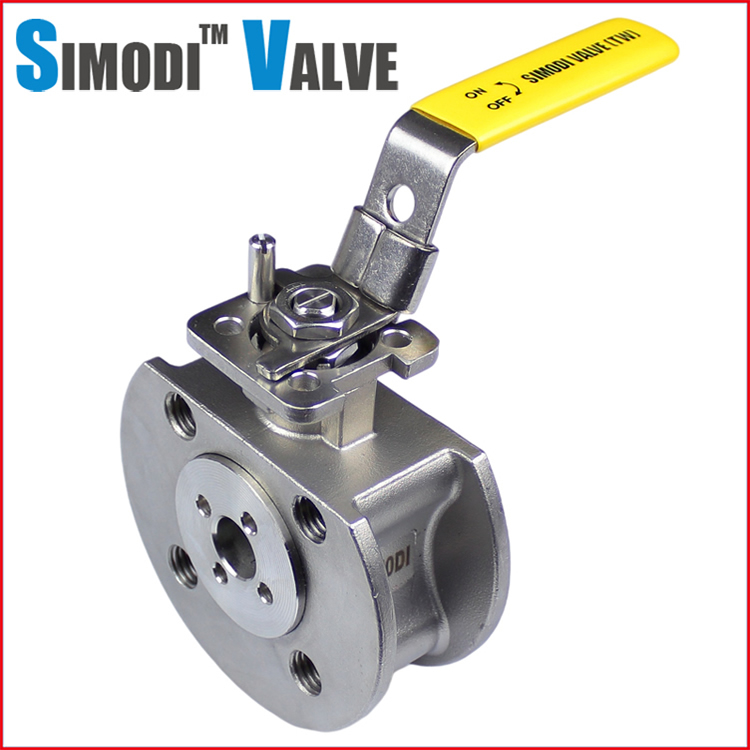

BVB-11F-PN16/40 One Piece Wafer type Flanged Ball Valve

SPECIFICATIONS
Available Material	1.4408/1.0619
Working Pressure	DIN PN16/40
Ball Bore	Full
End Connection	EN1092-1 PN16
Size Range	1/2" to4" DIN PN16/40
ISO Mount	Direct

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	SEAT:PTFE/PTFE+25%GL/PTFE+50%SS/TFM1600/TFM4215

One Piece Wafer Type Flanged Ball Valve

One piece wafer type flanged ball valve is applicable for installations in confined spaces.

Applicable media: Impurity-free media, such as pure oil, compressed air, liquid media, etc. undefined

Wafer type flanged ball valve

1 piece falnged ball valve

undefined

BVB-11F-PN16/40 One Piece Wafer Type Flanged Ball Valve

SPECIFICATIONS
* Working Pressure: 1/2”~2”PN16/40 2-1/2”~2”PN16
* Temperature Range: -15～150℃(PTFE)
*Blow-Out-Proof Stem Design
* Antistatic Device
*EN1092-1 TYPE 21 PN16

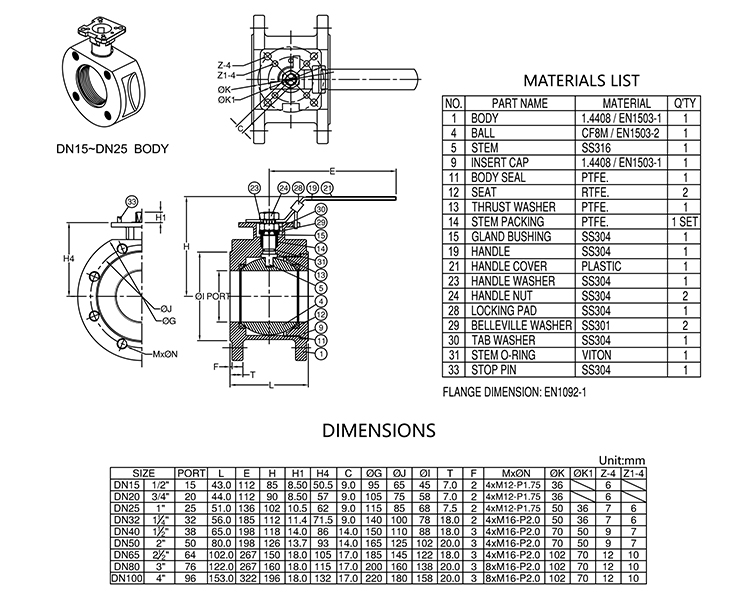

Flange Dimensions: EN1092-1 TYPE 21 PN16
*Investment Casting
*Solution Treatment
*Full port
* Operator: Lever/Actuator
